Docker-Gitlab安装的详细指南

1、简述

GitLab 是一个功能强大的 Git 仓库管理工具，支持代码审查、持续集成/持续部署 (CI/CD) 等多种功能。使用 Docker 安装 GitLab 可以简化部署过程，确保环境一致性。本文将介绍如何在 Docker 中安装和配置 GitLab。

2、准备环境

gitlab要求至少4G的内存:

[root@localhost ~]# free -m

              total        used        free      shared  buff/cache   available

Mem:           5786        4201         147          29        1438        1265

Swap:             0           0           0

准备好Docker容器：

Docker：基本安装和配置

拾荒的小海螺，公众号：拾荒的小海螺

Docker：基本安装和配置

3、拉取gitlab容器

直接拉取最新的gitlab版本

docker pull gitlab/gitlab-ce

创建一个目录来存放 GitLab 的配置、日志和数据文件。例如：

mkdir -p /data/gitlab/config /data/gitlab/logs /data/gitlab/data

使用以下命令启动 GitLab 容器：

$ sudo docker run -d  -p 8443:443 -p 8090:8090 -p 8022:22 --name gitlab --restart always

-v /data/gitlab/config:/etc/gitlab

-v /data/gitlab/logs:/var/log/gitlab

-v /data/gitlab/data:/var/opt/gitlab gitlab/gitlab-ce

-d：后台运行

 -p：将容器内部端口向外映射

 --name：命名容器名称

 -v：将容器内数据文件夹或者日志、配置等文件夹挂载到宿主机指定目录

4、修改端口映射

在/data/gitlab/config路径中找到gitlab.rb

[root@localhost config]# ls

gitlab.rb            initial_root_password  ssh_host_ecdsa_key.pub  ssh_host_ed25519_key.pub  ssh_host_rsa_key.pub

gitlab-secrets.json  ssh_host_ecdsa_key     ssh_host_ed25519_key    ssh_host_rsa_key          trusted-certs

在gitlab.rb配置中添加：

# 配置http协议所使用的访问地址,不加端口号默认为80

external_url 'http://192.168.220.144:8090'

# 配置ssh协议所使用的访问地址和端口

gitlab_rails['gitlab_ssh_host'] = '192.168.220.144'

# 此端口是run时22端口映射的222端口

gitlab_rails['gitlab_shell_ssh_port'] = 8022

然后重启gitlab：

docker restart gitlab

然后在浏览器上访问：http://192.168.220.144:8090

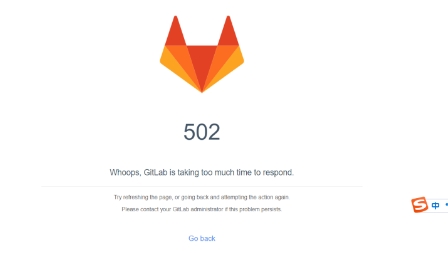

出现这个页面不是失败，Gitlab启动比较慢，要多等一会儿。

5、修改密码

1、root 默认密码放在initial_root_password 文件底下，通过以下指令查看

docker exec -it gitlab grep 'Password:' /etc/gitlab/initial_root_password

find / -name initial_root_password

cat /data/gitlab/config/initial_root_password

2、修改默认的密码

首先进入gitlab控制台：

docker exec -it gitlab /bin/bash

接着进入指定的gitlab-rails控制台：

gitlab-rails console -e production

这一步可能等待比较久，多等一下等进入输入控制台

按步骤一步一步执行：

user =User.find(1)                                 //第一步

user.password ='123456?'                  //第二步

user.password_confirmation ='123456?'            //第三步

user.send_only_admin_changed_your_password_notification!  //第四步

user.save!                          //第五步

[root@localhost config]# docker exec -it gitlab /bin/bash

root@8e97133ab2de:/# gitlab-rails console -e production

--------------------------------------------------------------------------------

 Ruby:         ruby 2.7.5p203 (2021-11-24 revision f69aeb8314) [x86_64-linux]

 GitLab:       14.6.1 (661d663ab2b) FOSS

 GitLab Shell: 13.22.1

 PostgreSQL:   12.7

--------------------------------------------------------------------------------

Loading production environment (Rails 6.1.4.1)

irb(main):001:0> user =User.find(1)

=> #<User id:1 @root>

irb(main):002:0> user.password ='123456?'

=> "123456?"

irb(main):003:0> user.password_confirmation ='123456?'

=> "123456?"

irb(main):004:0> user.send_only_admin_changed_your_password_notification!

=> true

irb(main):005:0> user.save!

=> true

然后通过exit退出，再重启gitlab。

6、备份和恢复

GitLab 提供了简单的备份机制。可以通过以下命令创建备份：

docker exec -t gitlab gitlab-backup create

要恢复 GitLab 实例，请将备份文件复制到 /data/gitlab/data/backups 目录，然后运行以下命令：

docker exec -t gitlab gitlab-backup restore BACKUP=your_backup_filename

请将 your_backup_filename 替换为实际的备份文件名。

7、优化启动速度

因  docker 版本的gitlab 启动会自动启动 prometheus|grafana|alertmanager 和一系列 exporter， 非常占用资源，且导致启动比较慢，因此我们可以通过修改 /etc/gitlab/gitlab.rb 来关闭该功能。

默认启动包含如下内容：

# ps -ef|grep -E 'prome|exporter|alert|graf'

git          280     272  0 10:09 ?        00:00:00 /opt/gitlab/embedded/bin/gitlab-workhorse -listenNetwork unix -listenUmask 0 -listenAddr /var/opt/gitlab/gitlab-workhorse/sockets/socket -authBackend http://localhost:8080 -authSocket /var/opt/gitlab/gitlab-rails/sockets/gitlab.socket -documentRoot /opt/gitlab/embedded/service/gitlab-rails/public -pprofListenAddr  -prometheusListenAddr localhost:9229 -secretPath /opt/gitlab/embedded/service/gitlab-rails/.gitlab_workhorse_secret -logFormat json -config config.toml

root         350      23  0 10:09 ?        00:00:00 runsv redis-exporter

root         351      23  0 10:09 ?        00:00:00 runsv gitlab-exporter

root         352      23  0 10:09 ?        00:00:00 runsv grafana

root         353      23  0 10:09 ?        00:00:00 runsv postgres-exporter

root         355      23  0 10:09 ?        00:00:00 runsv alertmanager

root         356      23  0 10:09 ?        00:00:00 runsv prometheus

root         357     351  0 10:09 ?        00:00:00 svlogd -tt /var/log/gitlab/gitlab-exporter

root         358     350  0 10:09 ?        00:00:00 svlogd -tt /var/log/gitlab/redis-exporter

root         359     352  0 10:09 ?        00:00:00 svlogd -tt /var/log/gitlab/grafana

gitlab-+     360     352  0 10:09 ?        00:00:00 /opt/gitlab/embedded/bin/grafana-server -config /var/opt/gitlab/grafana/grafana.ini

gitlab-+     361     350  0 10:09 ?        00:00:00 /opt/gitlab/embedded/bin/redis_exporter --web.listen-address=localhost:9121 --redis.addr=unix:///var/opt/gitlab/redis/redis.socket

root         362     353  0 10:09 ?        00:00:00 svlogd -tt /var/log/gitlab/postgres-exporter

git          363     351  0 10:09 ?        00:00:07 /opt/gitlab/embedded/bin/ruby /opt/gitlab/embedded/bin/gitlab-exporter web -c /var/opt/gitlab/gitlab-exporter/gitlab-exporter.yml

gitlab-+     365     353  0 10:09 ?        00:00:01 /opt/gitlab/embedded/bin/postgres_exporter --web.listen-address=localhost:9187 --extend.query-path=/var/opt/gitlab/postgres-exporter/queries.yaml

root         366     355  0 10:09 ?        00:00:00 svlogd -tt /var/log/gitlab/alertmanager

root         368     356  0 10:09 ?        00:00:00 svlogd -tt /var/log/gitlab/prometheus

gitlab-+     369     356  1 10:09 ?        00:00:12 /opt/gitlab/embedded/bin/prometheus --web.listen-address=localhost:9090 --storage.tsdb.path=/var/opt/gitlab/prometheus/data --config.file=/var/opt/gitlab/prometheus/prometheus.yml

gitlab-+     370     355  0 10:09 ?        00:00:00 /opt/gitlab/embedded/bin/alertmanager --web.listen-address=localhost:9093 --storage.path=/var/opt/gitlab/alertmanager/data --config.file=/var/opt/gitlab/alertmanager/alertmanager.yml

root         618     615  0 10:11 ?        00:00:00 tail --follow=name --retry /var/log/gitlab/redis-exporter/current /var/log/gitlab/redis-exporter/state /var/log/gitlab/postgresql/current /var/log/gitlab/postgresql/state /var/log/gitlab/sidekiq/current /var/log/gitlab/sidekiq/state /var/log/gitlab/gitlab-exporter/current /var/log/gitlab/gitlab-exporter/state /var/log/gitlab/gitlab-rails/gitlab-rails-db-migrate-2022-02-10-01-12-10.log /var/log/gitlab/gitlab-rails/exceptions_json.log /var/log/gitlab/gitlab-rails/application.log /var/log/gitlab/gitlab-rails/web_exporter.log /var/log/gitlab/gitlab-rails/application_json.log /var/log/gitlab/gitlab-rails/sidekiq_client.log /var/log/gitlab/gitlab-rails/audit_json.log /var/log/gitlab/gitlab-rails/api_json.log /var/log/gitlab/gitlab-rails/auth.log /var/log/gitlab/gitlab-rails/production.log /var/log/gitlab/gitlab-rails/service_measurement.log /var/log/gitlab/gitlab-rails/graphql_json.log /var/log/gitlab/gitlab-rails/production_json.log /var/log/gitlab/gitlab-rails/git_json.log /var/log/gitlab/gitlab-rails/grpc.log /var/log/gitlab/logrotate/current /var/log/gitlab/grafana/current /var/log/gitlab/grafana/state /var/log/gitlab/postgres-exporter/current /var/log/gitlab/postgres-exporter/state /var/log/gitlab/nginx/gitlab_access.log /var/log/gitlab/nginx/gitlab_error.log /var/log/gitlab/nginx/current /var/log/gitlab/nginx/access.log /var/log/gitlab/nginx/error.log /var/log/gitlab/redis/current /var/log/gitlab/redis/state /var/log/gitlab/alertmanager/current /var/log/gitlab/alertmanager/state /var/log/gitlab/gitlab-workhorse/current /var/log/gitlab/gitlab-workhorse/state /var/log/gitlab/prometheus/current /var/log/gitlab/prometheus/state /var/log/gitlab/sshd/current /var/log/gitlab/gitaly/current /var/log/gitlab/gitaly/gitaly_ruby_json.log /var/log/gitlab/gitaly/state /var/log/gitlab/puma/puma_stderr.log /var/log/gitlab/puma/current /var/log/gitlab/puma/puma_stdout.log /var/log/gitlab/puma/state

root        2385    1071  0 10:26 pts/0    00:00:00 grep --color=auto -E prome|exporter|alert|graf

通过修改gitlab.rb配置文件：

alertmanager['enable'] = false

node_exporter['enable'] = false

redis_exporter['enable'] = false

postgres_exporter['enable'] = false

gitlab_exporter['enable'] = false

prometheus_monitoring['enable'] = false

grafana['enable'] = false

然后重启启动gitlab，再查看

[root@localhost config]# ps -ef|grep -E 'prome|exporter|alert|graf'

chrony    96781  96777  0 07:46 ?        00:00:03 /opt/gitlab/embedded/bin/gitlab-workhorse -listenNetwork unix -listenUmask 0 -listenAddr /var/opt/gitlab/gitlab-workhorse/sockets/socket -authBackend http://localhost:8080 -authSocket /var/opt/gitlab/gitlab-rails/sockets/gitlab.socket -documentRoot /opt/gitlab/embedded/service/gitlab-rails/public -pprofListenAddr  -prometheusListenAddr localhost:9229 -secretPath /opt/gitlab/embedded/service/gitlab-rails/.gitlab_workhorse_secret -logFormat json -config config.toml

root      97762  97761  0 07:55 ?        00:00:00 tail --follow=name --retry /var/log/gitlab/sshd/current /var/log/gitlab/gitlab-rails/gitlab-rails-db-migrate-2022-10-28-09-37-05.log /var/log/gitlab/gitlab-rails/production.log /var/log/gitlab/gitlab-rails/application.log /var/log/gitlab/gitlab-rails/application_json.log /var/log/gitlab/gitlab-rails/grpc.log /var/log/gitlab/gitlab-rails/service_measurement.log /var/log/gitlab/gitlab-rails/auth.log /var/log/gitlab/gitlab-rails/sidekiq_client.log /var/log/gitlab/gitlab-rails/production_json.log /var/log/gitlab/gitlab-rails/api_json.log /var/log/gitlab/gitlab-rails/gitlab-rails-db-migrate-2022-10-28-09-47-20.log /var/log/gitlab/gitlab-rails/exceptions_json.log /var/log/gitlab/logrotate/current /var/log/gitlab/redis/current /var/log/gitlab/gitaly/gitaly_ruby_json.log /var/log/gitlab/gitaly/current /var/log/gitlab/postgresql/current /var/log/gitlab/puma/puma_stdout.log /var/log/gitlab/puma/puma_stderr.log /var/log/gitlab/puma/current /var/log/gitlab/sidekiq/current /var/log/gitlab/gitlab-workhorse/current /var/log/gitlab/nginx/current /var/log/gitlab/nginx/error.log /var/log/gitlab/nginx/gitlab_access.log /var/log/gitlab/nginx/gitlab_error.log /var/log/gitlab/nginx/access.log /var/log/gitlab/gitlab-exporter/current /var/log/gitlab/redis-exporter/current /var/log/gitlab/prometheus/current /var/log/gitlab/alertmanager/current /var/log/gitlab/postgres-exporter/current /var/log/gitlab/grafana/current

root      98228  92777  0 07:58 pts/1    00:00:00 grep --color=auto -E prome|exporter|alert|graf

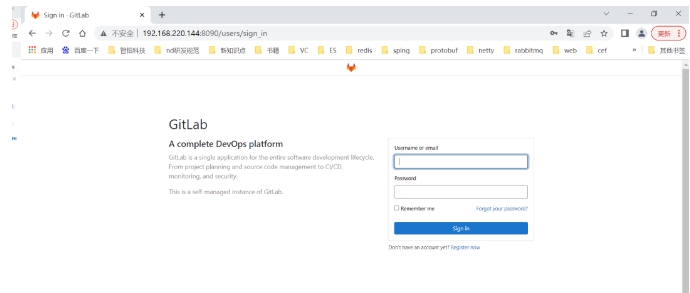

重新访问：http://192.168.220.144:8090，出现以下界面代表你安装成功：

8、配置ssh keys

在本地打开git bash 客户端输入ssh-keygen 生成公钥和私钥

ssh-keygen -t rsa -C 'xxx@xxx.com'

lsk1@LAPTOP-0SIF32SL MINGW64 /e/Project/Java_Project/eureka

$ ssh-keygen

Generating public/private rsa key pair.

Enter file in which to save the key (/c/Users/wlsk1/.ssh/id_rsa):   //首次回车

Enter passphrase (empty for no passphrase):             //可以输入密码

Enter same passphrase again:                    //再次确认密码

Your identification has been saved in /c/Users/wlsk1/.ssh/id_rsa.

Your public key has been saved in /c/Users/wlsk1/.ssh/id_rsa.pub.

The key fingerprint is:

SHA256:sGfrvxU09TPXBfyVhMEyN4k/j/a7WSaaPywPSp3gClk wlsk1@LAPTOP-0SIF32SL

The key's randomart image is:

+---[RSA 3072]----+

|            ooBoo|

|           + B.o+|

|      .     B .+=|

|       o   . +  =|

|      . E . . +  |

|       = o o = . |

|      o . o *.o o|

|       o o o.+o+o|

|        o.+.o+o=o|

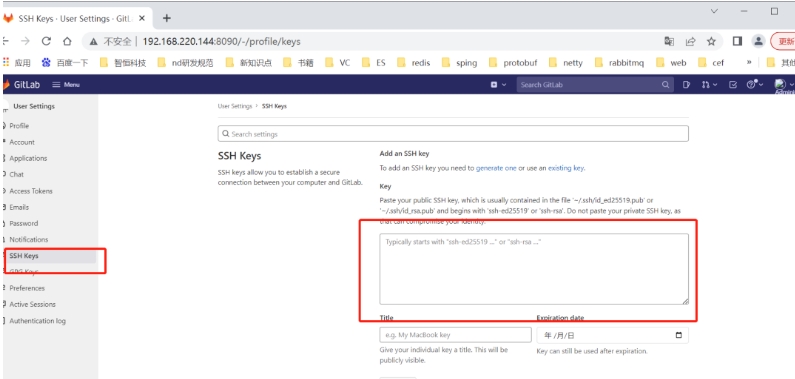

在本地目录c/Users/wlsk1/.ssh/id_rsa.pub.下查找id_rsa.pub打开并复制到

接着自己通过Git客户端直接拉取代码就行。

9、总结

通过 Docker 安装 GitLab 不仅简化了部署过程，还提供了灵活性和可移植性。希望本文能帮助你顺利完成 GitLab 的安装和配置。如果有任何问题，欢迎留言讨论！
